Product description

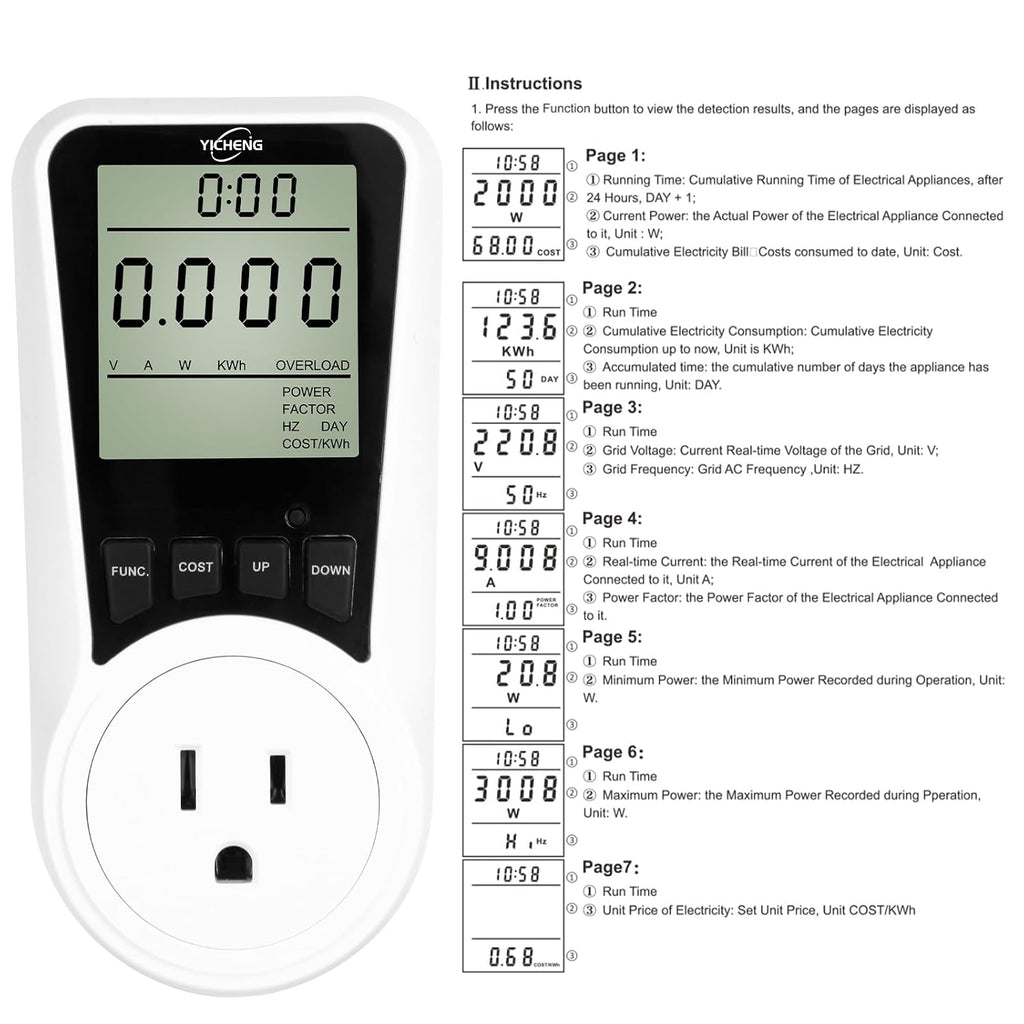

Mode 7 can directly occur while press down the button ”cost”
If an abnormal display appears or the buttons produce no response, the instrument must be reset. You can press the RESET button to reset it.
Please read the numbers on the front angle of the LCD screen, not from the side view.
If you don't use it for a long time, you need to plug it into the AC socket for 15 minutes and press the reset button to reset it.
The power of electrical appliances can not exceed 1800W.

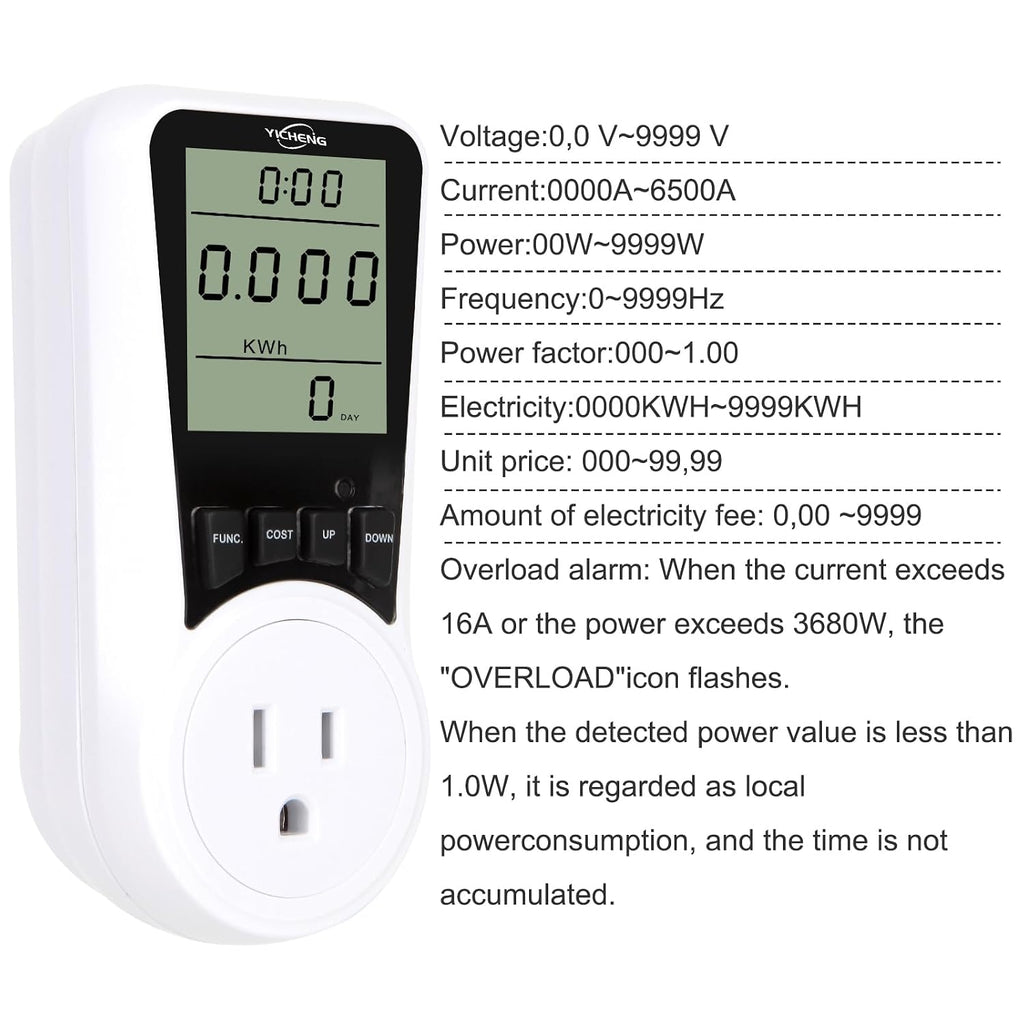

Voltage:0,0 V~9999 V

Current:0000A~6500A

Power:00W~9999W

Frequency:0~9999Hz

Power factor:000~1.00

Electricity:0000KWH~9999KWH

Unit price: 000~99,99

Amount of electricity fee: 0,00 ~9999

Overload alarm: When the current exceeds 16A or the power exceeds 3680W, the"OVERLOAD"icon flashes.

When the detected power value is less than 1.0W, it is regarded as local powerconsumption, and the time is not accumulated.

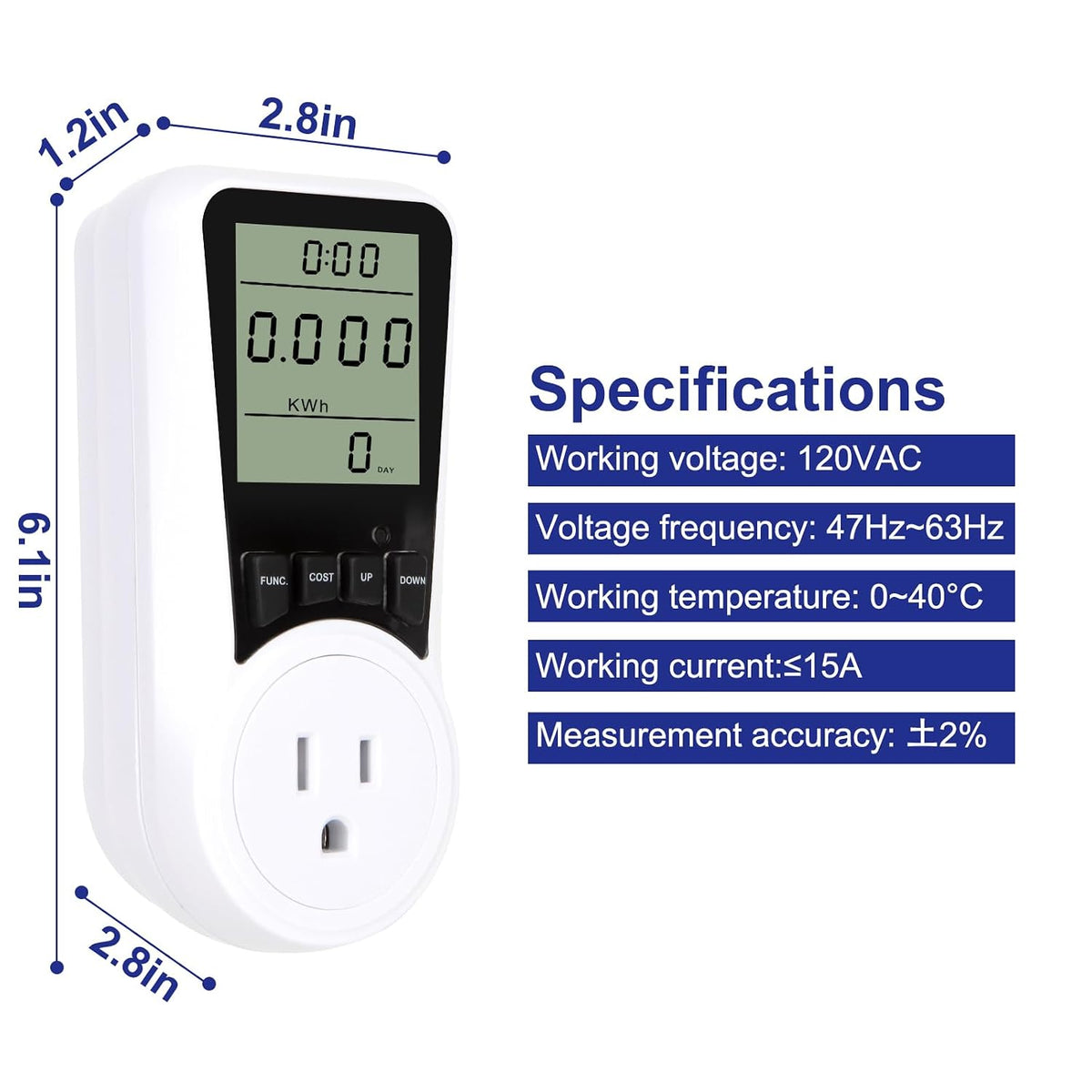

Working voltage: 120VAC

Voltage frequency: 47Hz~63Hz

Working temperature: 0~40°C

Working current:≤15A

Measurement accuracy: 土2%

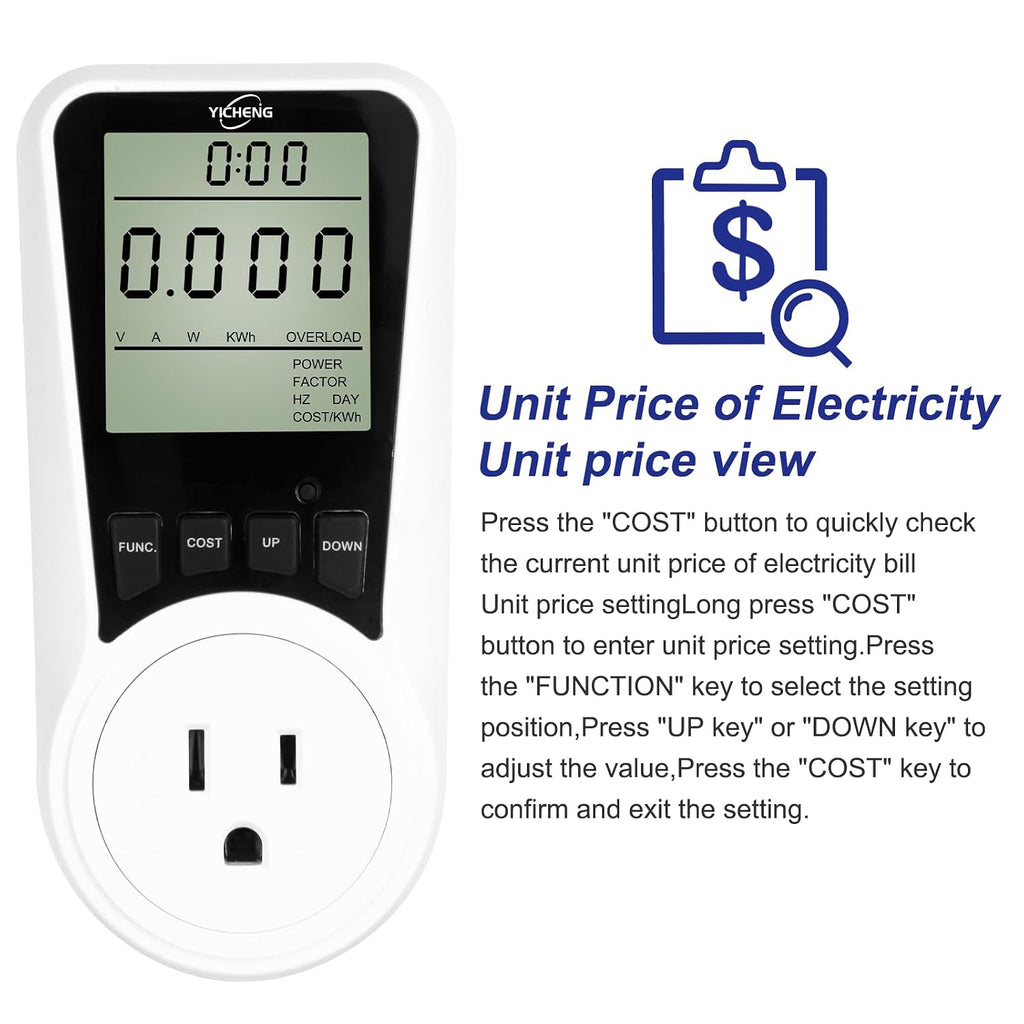

Real-time Monitoring & Saving bills watt meter can help you to know more clear about the consumption of the appliance, help reduce the electricity cost. enter setting mode. Select the Cost/KWH mode, enter the utility providers cost of electricity so you can easily identify which appliance in your home is costing you the most money.

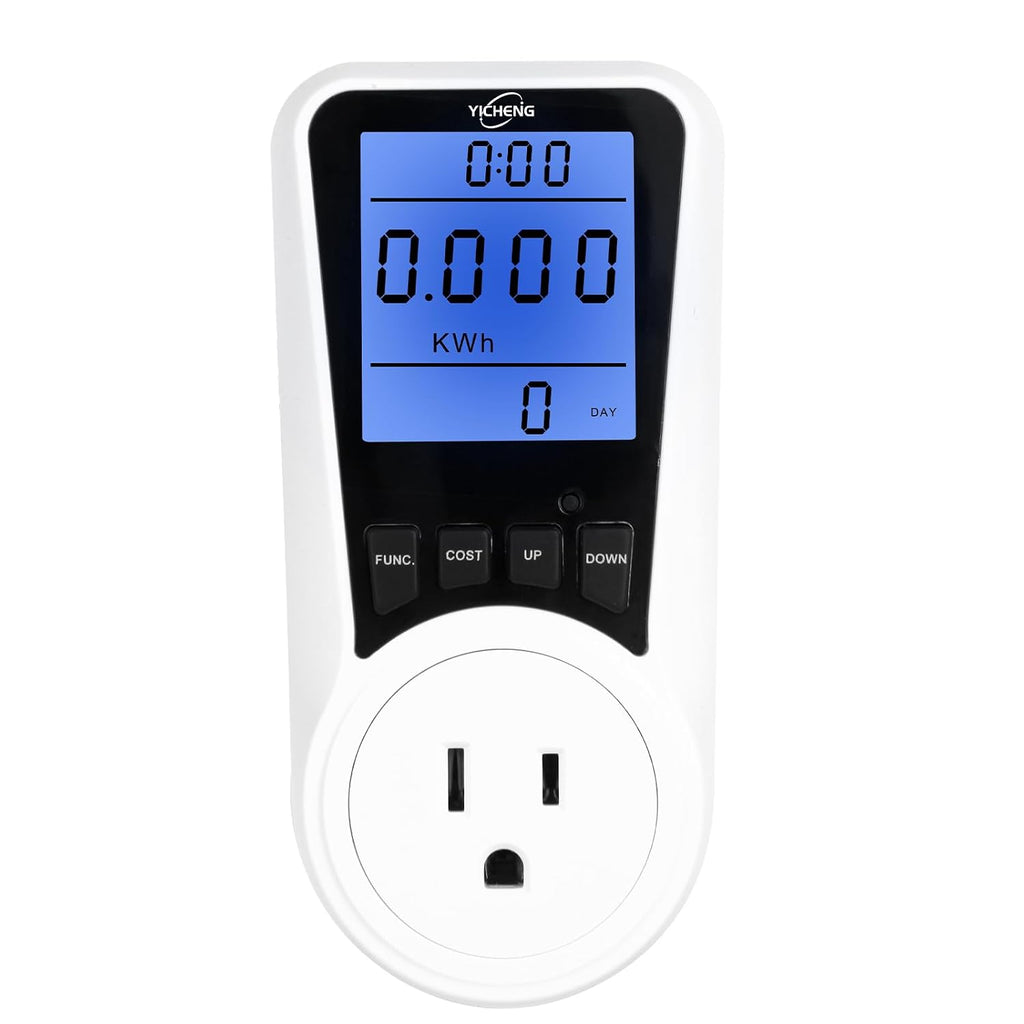

Digital large LCD display screen make you easy to read and record cumulative kilowatt-hour, time and electricity expenses from full angles. Solving the problem of unclear screens in many other similar products.
Blue and white backlights have no visual impairment when used at night, and screen data is clearly visible.

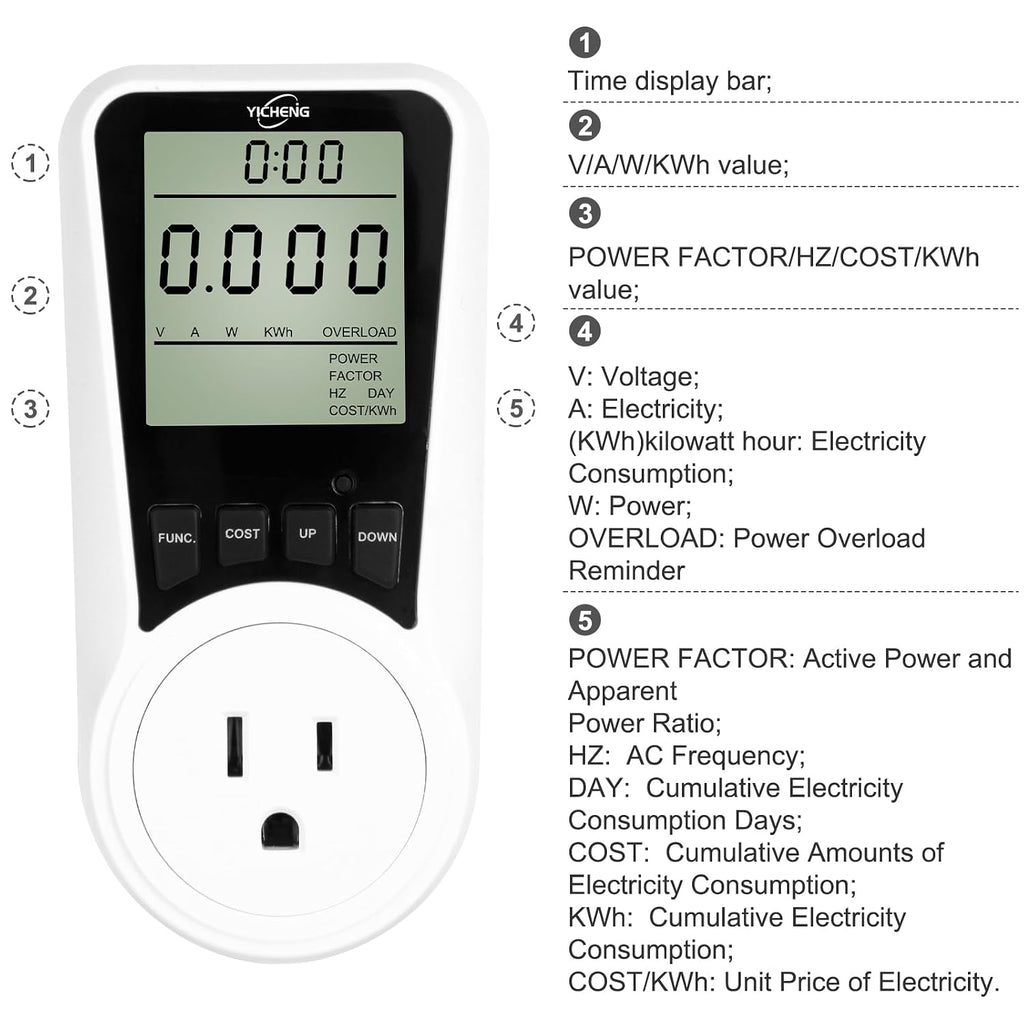

Electricity usage monitor: Monitor is the killer of the high-cost energy appliance, helping you lower power consumption and save money. Digital LCD Display: Large clear LCD display for easy reading, the screen size is 40mmx42mm. Various Parameters: Power(W), Energy (kWh), Voltage, Amps, Power Factor, Cost and Minimum & Maximum Power, ideal for energy consumption monitor.
Overload Protection: Once the whole power exceeds the rated power of monitor, LCD will display "OVERLOAD" with booming noise to remind the user Built-in Battery:With 3.6V rechargeable battery(NI-MH), It can store electricity. which allows meter to be moved and viewed without losing readings.
